JT-PETRO company can supply the Line pipe includes SSAW, LSAW, ERW and seamless pipe. At present, China has possessed advanced technologies and equipments in manufacture, inspection and testing of line pipe and some products have reached the world class, such as large OD line pipe, high grade line pipe and sour service line pipe.
Application
- Oil and gas transportation pipeline
- Water and other fluid pipeline
- Mineral slurry pipeline
Product Type
- Spiral seam submerged arc welded (SSAW) pipe
- Longitudinal seam submerged arc welded (LSAW) pipe
- Longitudinal seam electric resistance welded (ERW) pipe
- Seamless line pipe
Features
- High precision in size and shape
- Appropriate carbon content
- Excellent weldability
- Excellent comprehensive mechanical properties
- High impact toughness at low temperature
Specifications
- API Spec 5L Specification for Line Pipe
- ISO 3183 Petroleum and Natural Gas Industries-Steel Pipe for Pipeline Transportation Systems
- DIN 17172 Steel Pipes for Pipe Lines for the Transport of Combustible Fluids and Gases
- ГOCT 20295 Technical Conditions of Welded Pipe for Oil and Gas Pipeline
- Other related specifications and standards
Process Flowchart of SSAW Pipe

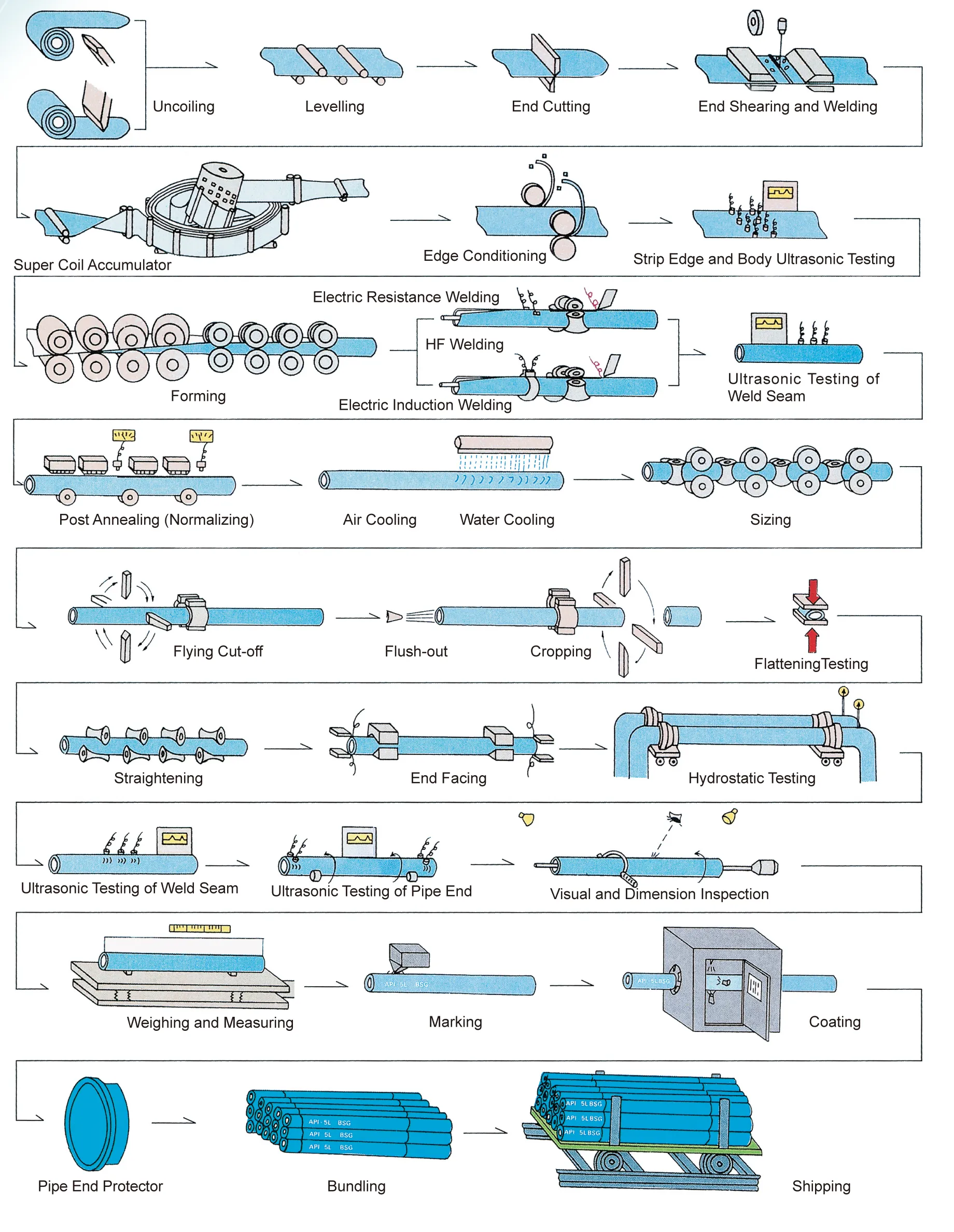

Process Flowchart of ERW Pipe
Process Flowchart of Seamless Line Pipe
Line Pipe Coating
The coating system is widely used in oil and gas pipe line construction, providing excellent corrosion resistance, good performance of anti-friction, anti mechanical damage and heat insulation, and long service life.
Generally, line pipe coating includes external coating and internal coating. The external coating is applied to improve the corrosion resistane and mechanical property and to prevent the heat radiation of line pipe. The internal coating provides a smooth internal surface with the cured and mechanically robust anticorrosion coat which improves flow rates, decreases fluid resistance, reduces pipe cleaning times and prolongs service life of transportation pipe line.
In the mid-1990s, China imported complete advanced sets of pipe coating lines from Dutch, US, Australia and Germany. Now, the coatings made in China have been used for some main oil and gas pipelines at home and abroad.
External Coating for Line Pipe
Product Type
- Single-layer fusion epoxy power (FBE) external coating
- Dual-layer fusion epoxy power (2FBE) external coating
- Dual-layer polythene / polypropylene (2PE/PP) external coating
- Three-layer polythene / polypropylene (3PE/PP) external coating
Features
- High adhesion
- Good electric insulation
- Excellent water proof and electrochemical corrosion resistane
- High strength and good anti mechanical damage ability
Specifications
- DIN 30670 Polyethylene Coating for Steel Pipes and Fittings
- DIN 30678 Polypropylene Coating of Steel Tubes
- NF A49-710 External Triple-layer Polyethylene Based Coating Application by Extrusion
- CSA Z245.20 External Fusion Bond Epoxy Coating for Steel Pipe
- Other related specifications and standards

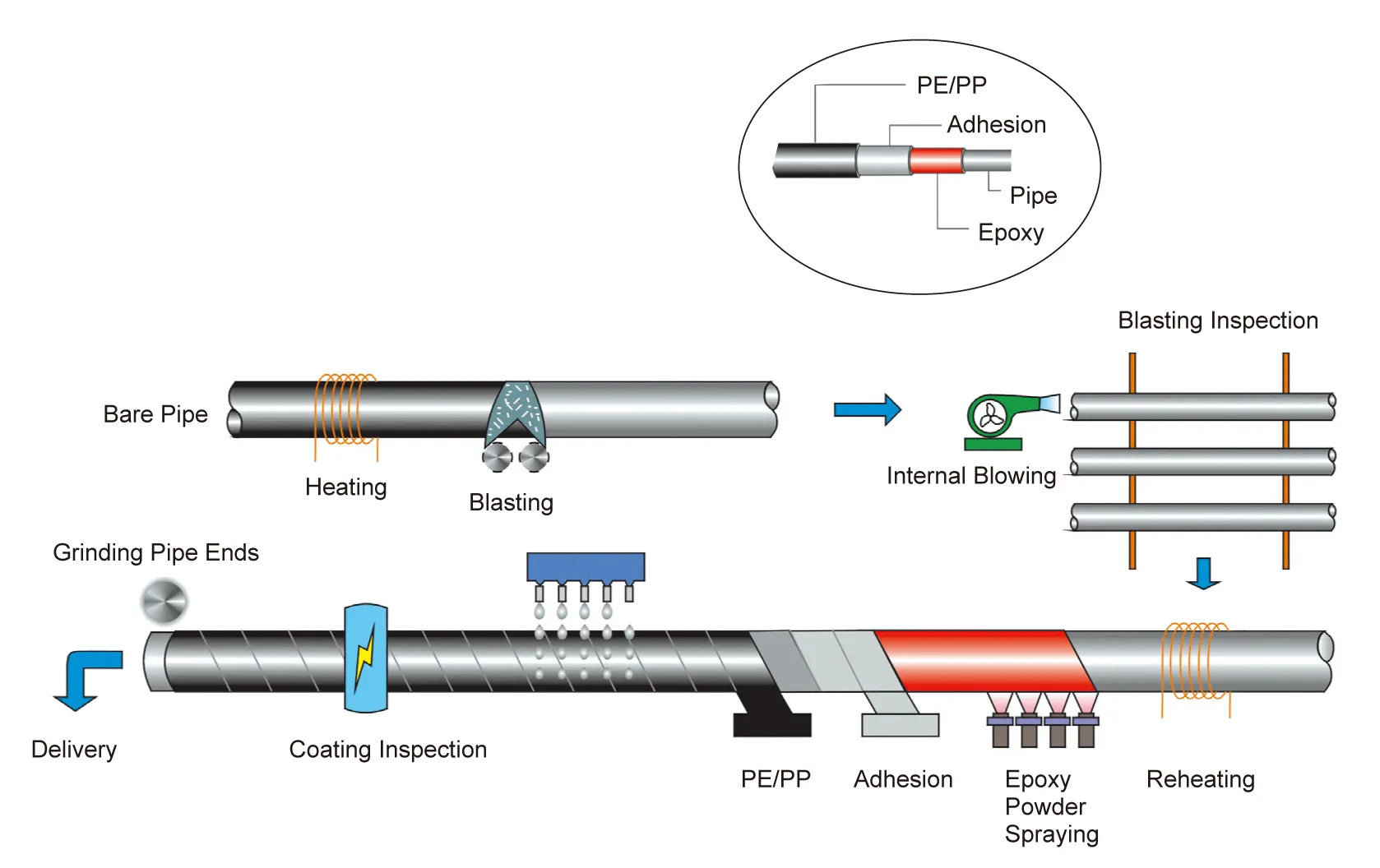

Process Flowchart of 3PE/PP Coating
