We can provide very big size Fittings for Linepipe, Accept customization according to customer requirements
Pipe Fittings and forged steel flanges

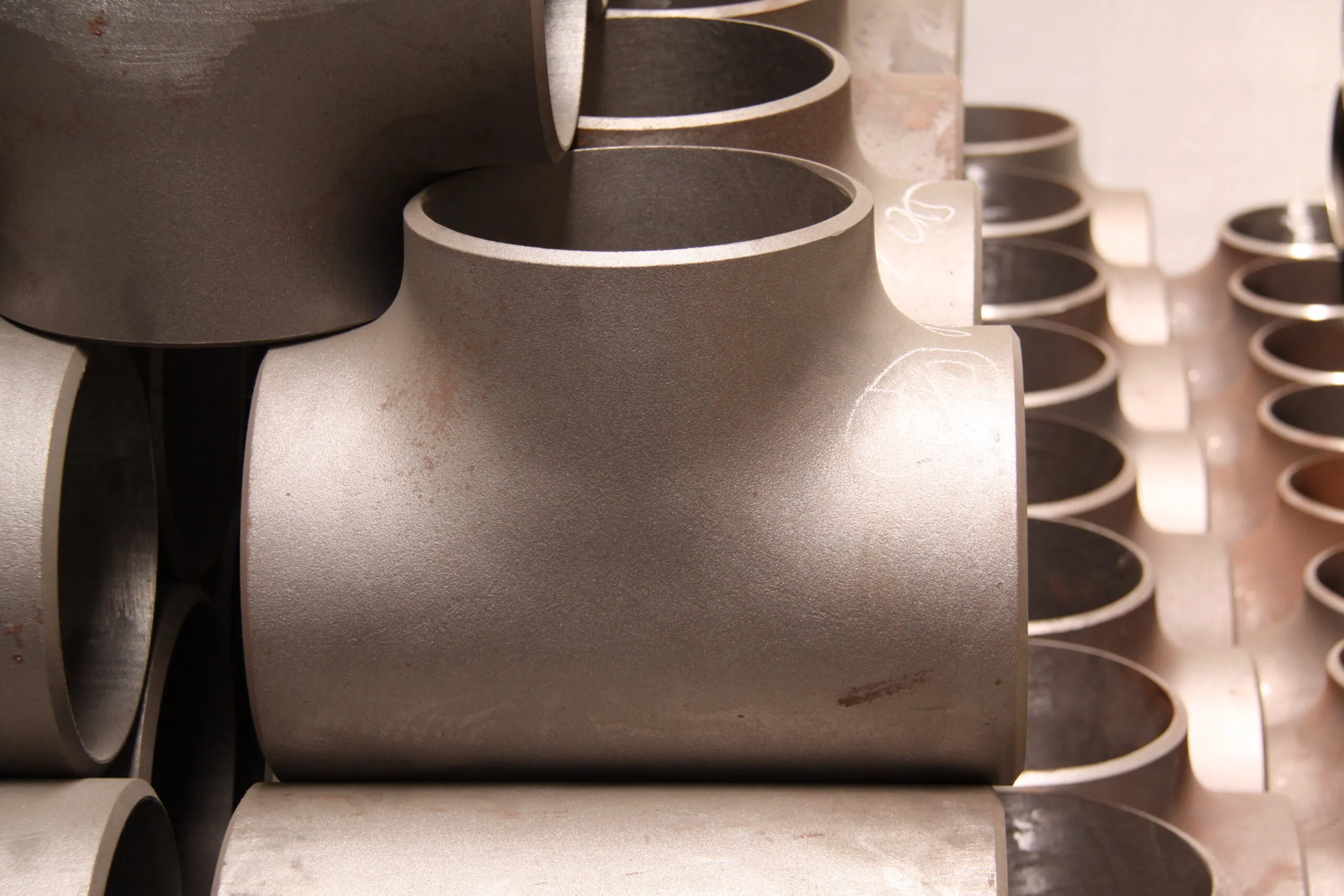

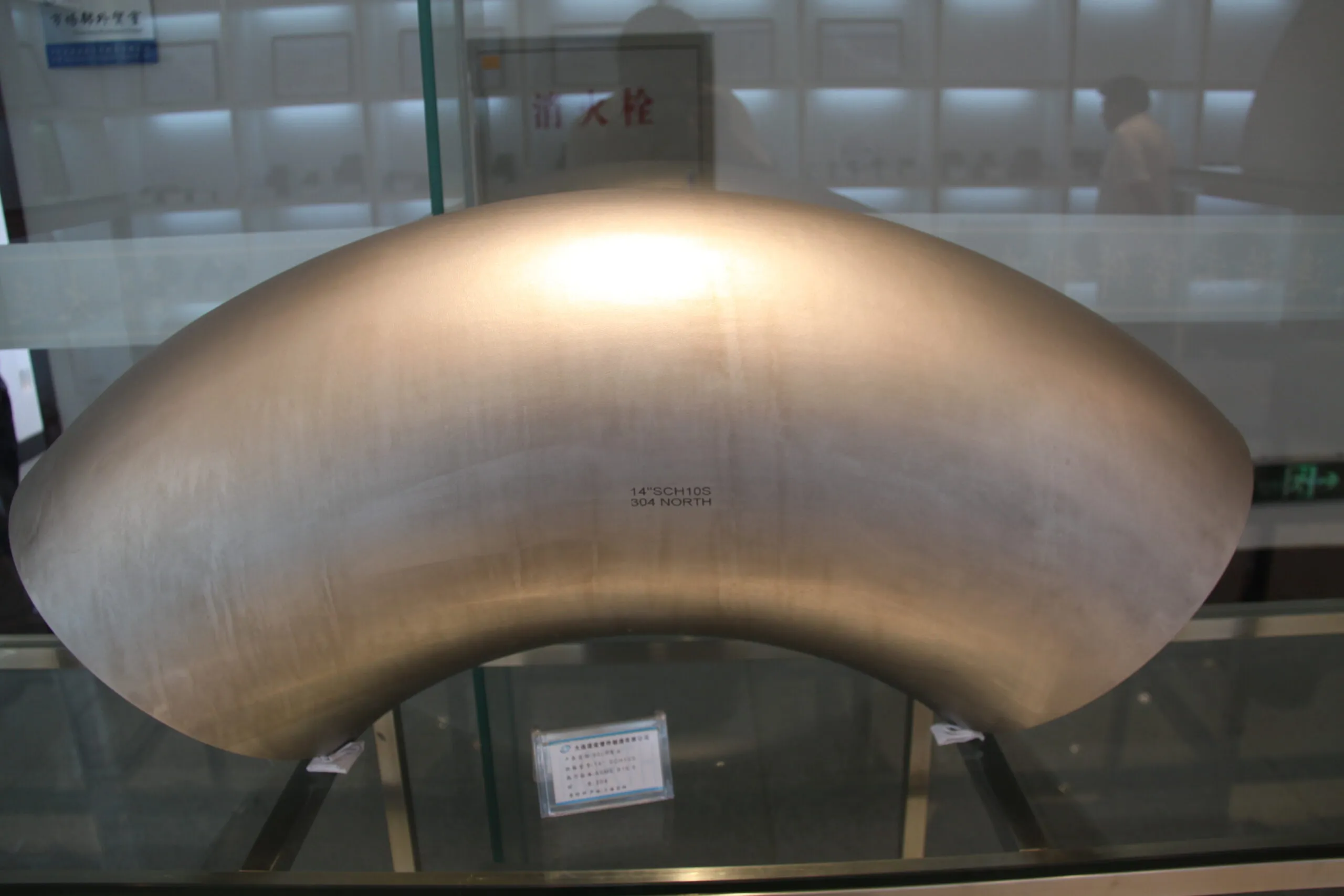

Pipe Fittings and flanges are essentially used in a pipeline to maintain the continuity of the piping system. JT-PETRO can supply seamless fittings in size up to 24”, welded fittings up to 60”, forged pipe fittings up to 4”, and forged flanges up to 48”. The types of pipe fitting and relevant specifications are listed as below.
Type Bst Ultra-Sonic Flow Meter
Type Mob Electro-Magnetic Flowmeter
| Wrought steel bw fittings | Forged steel sw and thd fittings | Forged steel Flanges | |||
| Seamless | Welded | SW | THD | WN Flanges SW Flanges THD Flanges SO Flanges Blind Flanges Lap Joint SPEC-Blind Etc. | |
| 45 LR/SR Elbows 90 LR/SR Elbows 180 LR/SR Elbows Equal and Red. Tees Conc.& Ecc. Reducers Caps Bends, etc
| 45，90 Elbows Equal and Red. Tees Conc. & Ecc. Reducers Couplings Caps Plug Nipples Unions O’ lets, etc. | ||||
| 1/2″- 24″ | 26″-60″ | 1/8″-4″ | 1/2″-48″ | ||
| SCH20 STD XS SCH60 SCH80 SCH120 SCH160 XXS | 2, 000LB 3, 000LB 6, 000LB 9, 000LB | 150LB 300LB 400LB 600LB 900LB 1, 500LB 2, 500LB | |||
| Specification ASME B16.9 GB12459 / GB/T 13401 SH3408
Materials: ASTM A234 WPB WP11 WP91 ASTM A420 WPL6 ASTM A403 304 321 316 316L, etc. 20# 15CrMo 12CrMoV 20G 1Cr18Ni9Ti and customer’ s option | Specification ASME B16.11 GB/T 14383 GB/T 14626 SH3410
| Specification GB9115 ASME B16.5 SH3406 |
| Materials ASTM A105 ASTM A350LF2 ASTM A182 304 316 316L 20Mn 25Mn 16Mn 1Cr18Ni9Ti and customer’ s option. | ||
Pipe Fittings
