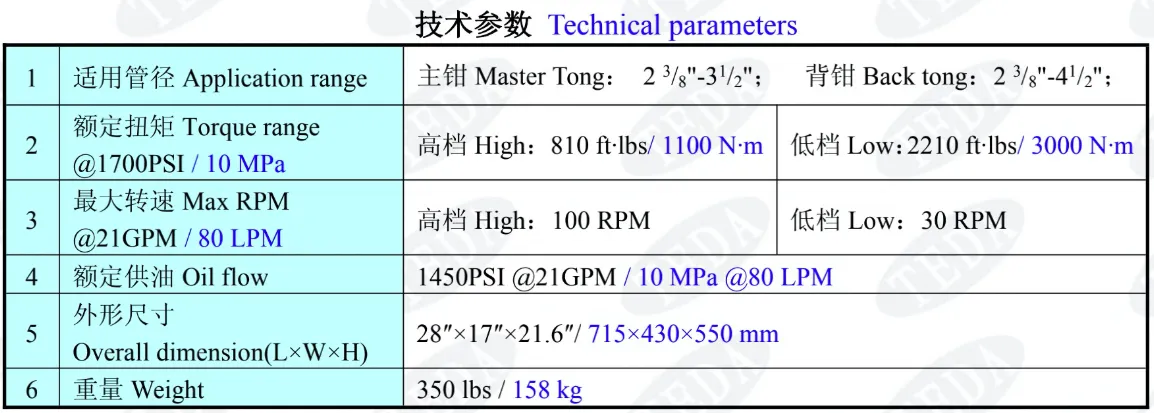

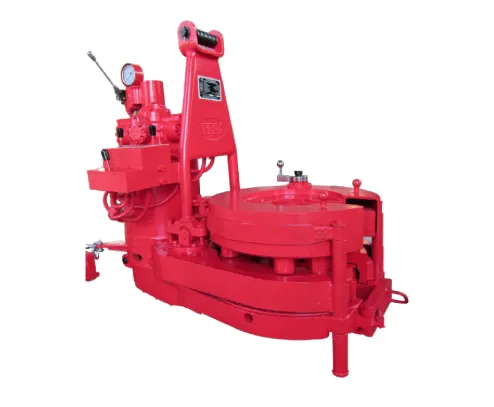

Model XQ89/3C Hydraulic Power Tong
Model XQ89/3C Hydraulic Power Tong is a special device for Well Service, which is used to make up and break out tubing thread. It is a improved new product based on Model XQ89/3B hydraulic power tong. Driving by hydraulic motor with low speed and large torque, model “H” manual control valve simply matching with oil motor. It’s a lighter hydraulic power tong for well service .
This product has the following features:
- The tong head uses inner curved roller climbing and clipping mechanism and needn’t to change any part during making up or breaking out the tubing thread which diameter is 2 7/8 ″or 31/2″.
- Two shifts provides high speed at the high gear and large torque at the low gear.
- The brake mechanism is on the upper and so it is easy to adjust and repair.
- The new type hydraulic Backup tong and master tong form a combined tong . Operating the manual control valve of master tong, the combined tong clipping and unloosing simultaneously.
- The adequate torque will be gained during making up and breaking out the various steel tube by adjusting pressure of oil .
- This product has owned several patents of China.

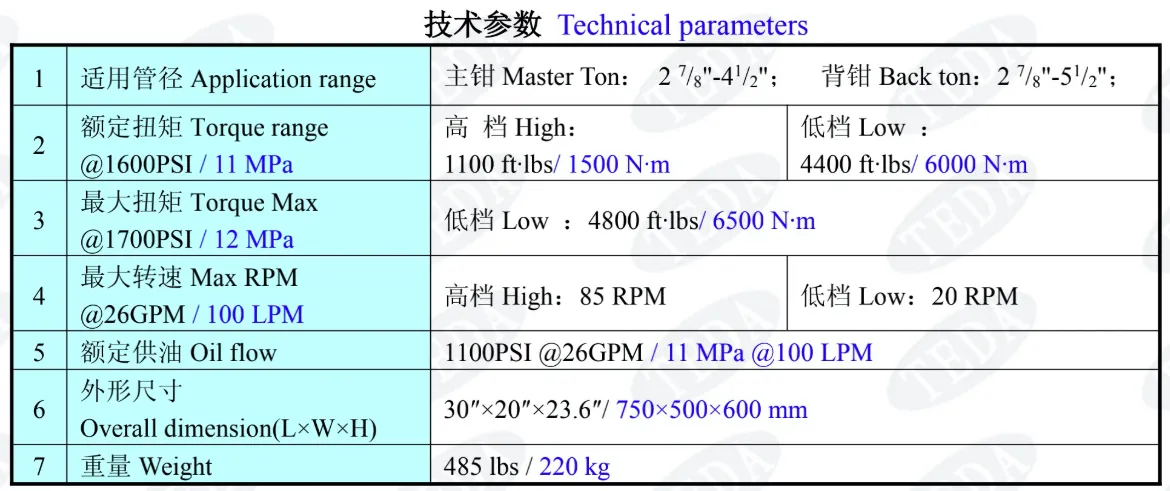

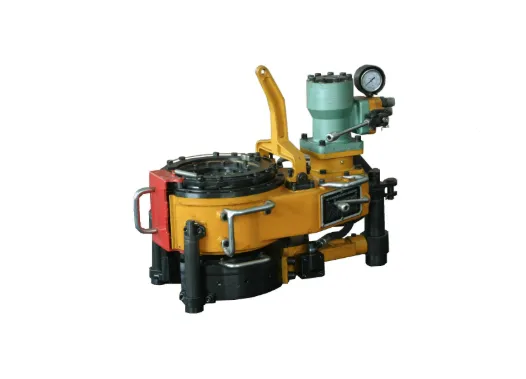

MODEL XQ114/6BHYDRAULIC POWER TONG
Model XQ114/6B(4 1/2″) hydraulic power tong is an open type power tong for the making up and breaking out of tubing in well services.
This product has the following features:
- The tong is made up of master tong and backup tong, the master tong has a high and low gear train, the tong is compact, light and efficient.
- Two shifts provides high speed at the high gear and large torque at the low gear.
- The brake mechanism is on the upper and so it is easy to adjust and repair.
- The new type hydraulic Backup tong and master tong form a combined tong .Operating the manual control valve of master tong, the combined tong clipping and unloosing simultaneously.
- The adequate torque will be gained during making up and breaking out the various steel tube by adjusting pressure of oil .
- This product has owned several patent of China.

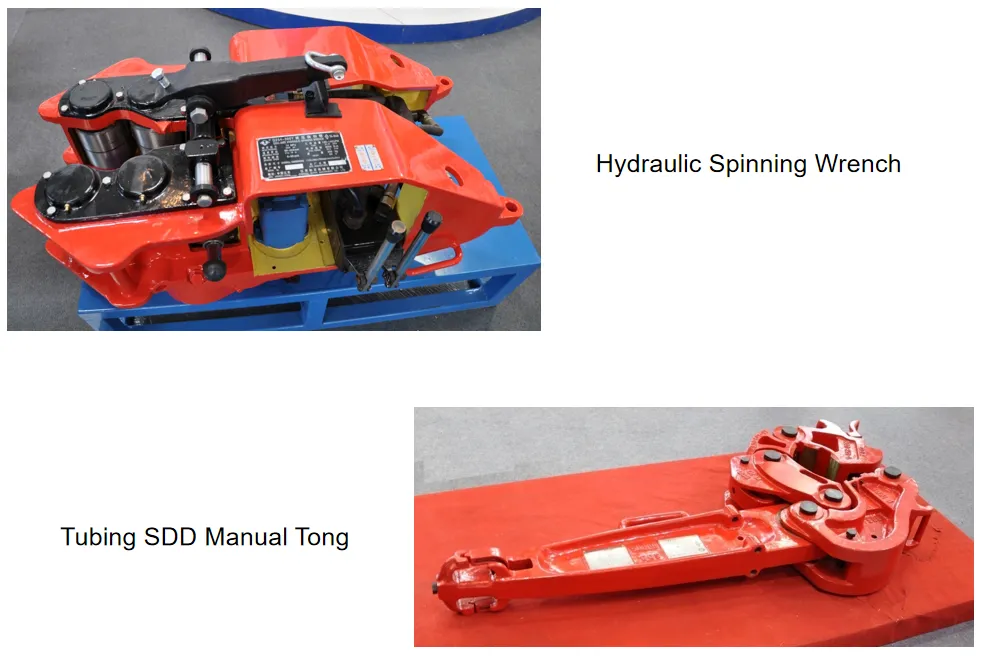

We can also supply other models of Hydraulic Power Tong,Drill Pipe Power Tong, Casing Tong.
