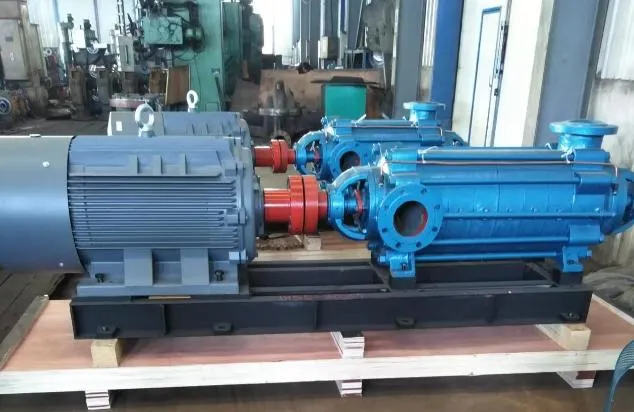

JT-PETRO can supply High-pressure Aggressive/Corrosive water PUMP
for example: the high-pressure 95-120 bar Aggressive/Corrosive water IP65, F class insulation, Ex-proof

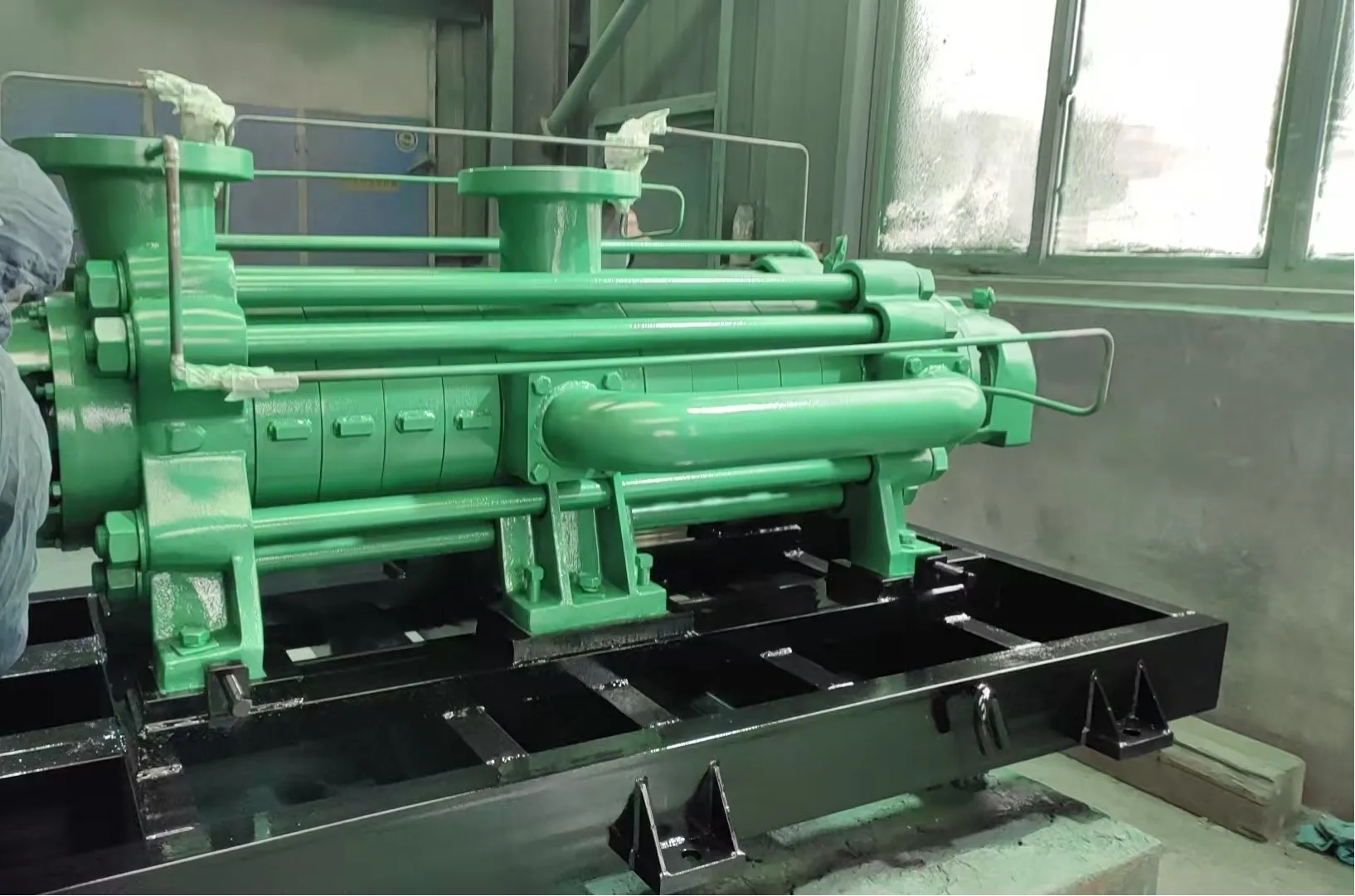

Model: DF120-100*10P
Flow rate: 120 m³/h
Pump head: 1000 meters
Motor Parameters: YBX3-450-2-630kw/6KV/50HZ/IP65/ExDIIBT4
Material: Duplex Stainless Steel 2205
Control cabinet: 6KV,630kw Soft start control cabinet

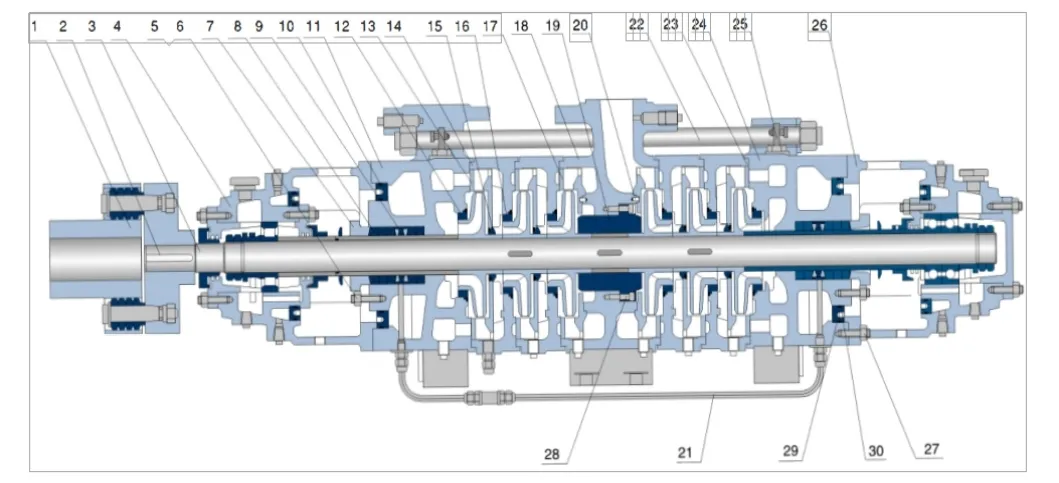

| Structural drawing and Material: | ||||
| 1. Coupling components (Duplex SS2205) | 2. Key pin (Duplex SS2205) | 3. Rotor component (Duplex SS2205) | 4. Bearings Component A (HT) | 5. Bolt (SS304) |
| 6. Nut (SS304) | 7. Packing gland (Duplex SS2205) | 8. Packing (High water base packing) | 9. packing ring (Duplex SS2205) | 10. Cooling chamber cover (Duplex SS2205) |
| 11. Suction Casing (Duplex SS2205) | 12. Sealing ring (SS316L) | 13. Guide vane (Duplex SS2205) | 14. Middle Casing (Duplex SS2205) | 15. Guide vane sleeve (SS316L) |
| 16. Sealing ring (SS316L) | 17. Final Stage guide vanes (Duplex SS2205) | 18. Discharge discharge Casing (Duplex SS2205) | 19. Throttle sleeve (Duplex SS2205) | 20. Pin (SS316L) |
| 21. Seal flushing pige (SS316L) | 22. Tie Rod (45#) | 23. Gasket (Fluorocarbon rubber) | 24. Secondary section Casing (Duplex SS2205) | 25. straight-port plug cock (SS316L) |
| 26. Bearing component B (HT) | 27. Studs and nuts (SS304) | 28. Screw (SS316L) | 29. O-ring (Fluorocarbon rubber) | 30. O-ring (Fluorocarbon rubber) |
Pump Performance Table
| NO. | Item | Unit | Value |
| 1 | Model | – | DF120-100×10P |
| 2 | Rated Flow | m³/h | 120 |
| 3 | Rated Head | m | 1000 |
| 4 | Eff. | % | 60.2 |
| 5 | Pump Speed | r/min | 2980 |
| 6 | NPSHR | m | 4.15 |
| 7 | Shaft Power | KW | 545 |
| 8 | Motor Power | KW | 630 |
| 9 | Impeller Stages | – | 10 |
| 10 | Impeller Diameter | mm | 289 |
| 11 | Passable Particles | mm | ≤1 |
| 12 | Medium Temperature | ℃ | ≤105 |
| 13 | Rotation Direction | – | CW when viewed from the drive end |
| 14 | Inlet Diameter | mm | 200 |
| 15 | Outlet Diameter | mm | 150 |
| 16 | Weight | KG | 1830 |
Electric Motor Technical Information for Pump
- Parameter
| No. | Item | Unit | Data |
| 1 | Model | – | YBX3-450-2-630kw/60KV/50HZ/IP65/Ex d IIB T4 |
| 2 | Rated power | KW | 630 |
| 3 | Rated voltage | KV | 6 |
| 4 | Rated current | A | 72.7 |
| 5 | RPM | r/min | 2985 |
| 6 | Frequency | Hz | 50 |
| 7 | Efficiency | % | 95.8 |
| 8 | Power factor | 0.87 | |
| 9 | Locked-rotor torque | 0.7 | |
| 10 | locked-rotor current | 7.0 | |
| 11 | Maximum torque | 2.0 | |
| 12 | Protection grade | – | IP65 |
| 13 | Insulation grade | – | F |
| 14 | Type of cooling | IC411 | |
| 15 | Explosion-proof type | Ex d IIB T4 | |
| 16 | Environmental condition | Indoors, and outdoor， Outdoor it is best to have a rain cover It is not advisable to soak in water for a long time. |
