It mainly used for the transportation of clean petrochemical processes, chemical industry products, power plant boiler feedwater, condensate, as well as seawater desalination projects, oilfield water injection projects, etc. It can also be used for other similar working conditions.

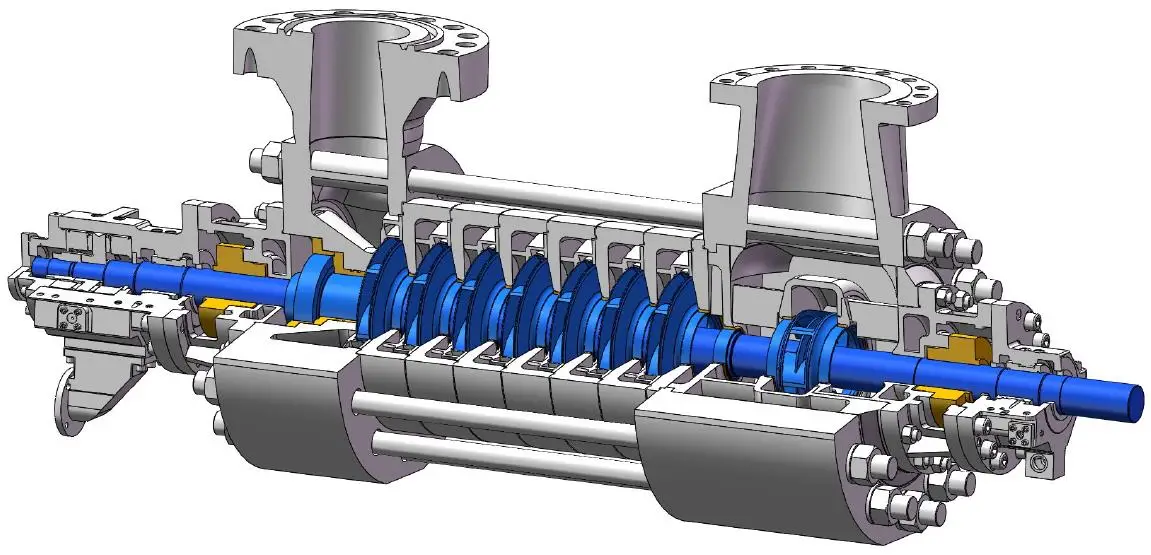

BB4 series pump is a horizontal single shell, radial split, center supported multi-stage centrifugal pump designed in accordance with API610 “Centrifugal pumps for petroleum,
heavy chemical, and natural gas industries” standard. The first stage impeller can be designed into two types of structures,single suction and double suction, according to the on-site situation. Other stage impellers can be designed to be arranged in the same direction or back to back according to the needs. The impellers can be sequentially installed on the shaft by sliding or heating. There are two structures: axial force is balanced by a balancing device or impeller self-balancing.
Transmission: At low speed, the pump is directly driven by prime motor through diaphragm coupling. At high speed, the pump increases speed through diaphragm coupling and gear speed increasing box, and then drives by prime motor through diaphragm coupling. From the drive direction, the pump rotates clockwise.

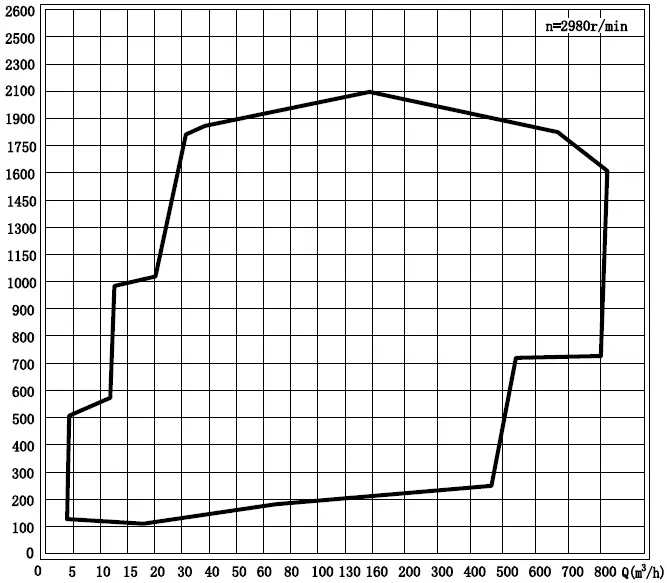

Performance range
Features and benefits
- The pump casing adopts forging technology, with good mechanical properties and high compressive strength
- The design of rotor rigid shaft reduces rotor deflection,reduces wear, reduces vibration, and improves pump operation stability.
- Equipped with a balancing device to improve bearing life and pump operation stability.
- Seal chamber designed to accommodate all single,unpressurized and pressurized dual cartridge seal configurations; complies fully with API 682 specification (ISO 21049).
- The inlet and outlet of the pump can be configured according to specific working conditions/requirements.
- Tapered shaft Eases seal maintenance
